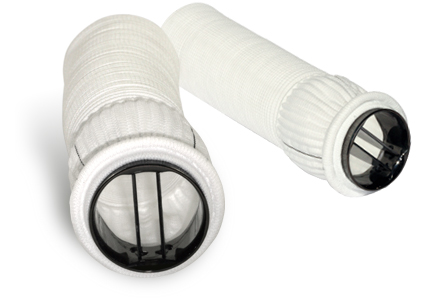

On-X Ascending Aortic Prosthesis
On-X Ascending Aortic Prosthesis with the
Vascutek Gelweave Valsalva™ Graft1
The On-X Ascending Aortic Prosthesis with the Vascutek Gelweave Valsalva Graft
is the only valve/graft combination to offer:
- A generous PTFE2, 3 sewing ring for ease of suturing
- The first coated valsalva graft for optimal coronary ostia reimplantation
On-X Ascending Aortic Prosthesis
|
||||||||
|---|---|---|---|---|---|---|---|---|
| Valve Size | Catalog Number |
Valve Internal Diameter (mm) |
Valve Orifice Area with leaflets in Place (cm2) |
Sewing Ring Diameter1 (mm) |
Graft Diameter (mm) |
Graft Length (cm) | ||
| 19 | ONXAAP-19 | 17.4 | 2.00 | 27 | 20 | 11 | ||
| 21 | ONXAAP-21 | 19.4 | 2.53 | 30 | 22 | 11 | ||
| 23 | ONXAAP-23 | 21.4 | 3.13 | 33 | 24 | 11 | ||
| 25 | ONXAAP-25 | 23.4 | 3.73 | 34 | 26 | 11 | ||
| 27/29 | ONXAAP-27/29 | 23.4 | 3.73 | 36 | 26 | 11 | ||
Disclaimer
On-X aortic and mitral valves are FDA approved. Not all On-X valve models are available in all markets.
CAUTION: Federal law restricts this device to sale by or on the order of a physician. Refer to the Instructions for Use that accompany each valve for indications, contraindications, warnings, precautions and possible complications.
References
- The Vascutek Gelweave ValsalvaTM Graft is a product of Vascutek, a Terumo Company http://www.vascutek.com.
- Sewing ring nominal dimensions.
- All On-X valve sewing rings are made of polytetrafluoroethylene (PTFE).
