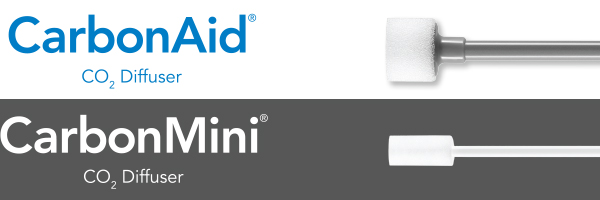

CarbonAid® & CarbonMini®

CO2 DIFFUSERS

Reduce Risk of Air Embolism During Open Heart Surgery.

Product Highlights

  • Reduces risk of air embolism by more effectively de-airing.1,*
  • Significantly reduces the time for microemboli to disappear.2

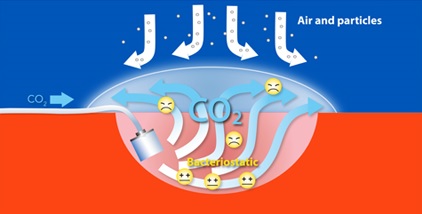

  • May prevent infections by creating a >99% bacteriostatic atmosphere.3,4

Product Overview

1
2
3

1. DIFFUSER TIP

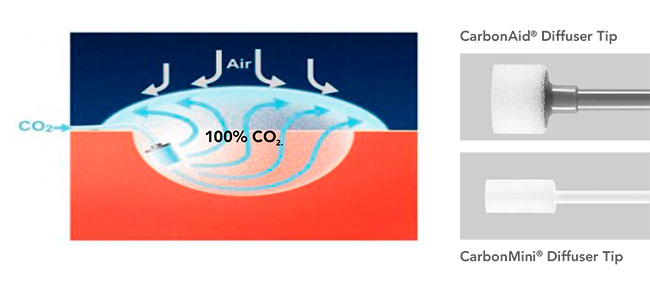

Foam tip allows CO2 to be delivered in a high flow, but diffused in a low velocity manner, allowing CO2 to fully fill the surgical wound cavity during open heart procedures by replacing air with > 99% CO2.

2. STAR SHAPED TUBING

Star shaped, wire reinforced tubing allows CO2 to flow freely, even while bent for easy and secure surgical positioning in the wound cavity.

Carbonaid call out4

3. PVC tubing with adequate length for connection to tank or central line CO2

CarbonAid Call 6
1
2
3

1. Star shaped Tubing

CarbonAid unique star shaped inner tubing, allows unobstructed, free flowing CO2 while bending tubing for easy surgical cavity positioning.

2. Reinforced Tubing

Bendable reinforced wire tubing near the tip end allows the foam tip to be securely positioned into place in the wound cavity.

3. Star shaped wire

Allows free flowing CO2 while bending tubing for easy surgical cavity positioning. Bendable reinforced wire tubing near the foam tip end allows the foam tip to be securely positioned into place in the wound cavity.

US-CarbonAid-Overview

Clinical Evidence

Demonstrated Superiority to Other Diffusors

A robust, independent clinical study comparing CO2 field flooding devices, including CarbonAid and other commercial and improvised deairing devices, concluded that the CarbonAid device is superior to other devices or methods.1,*,**





*Comparison of CO2 delivery options from in-vitro experiment data.
** When measured at 10L/minute.
US-CarbonAid-Clincial-1

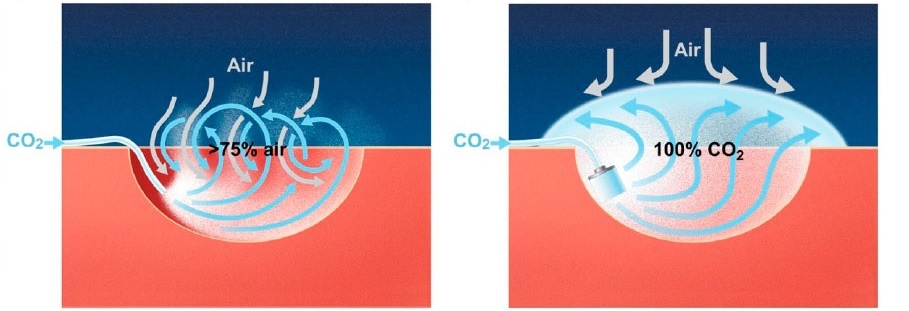

CarbonAid CO2 Diffusers Provide Near Complete De-Airing

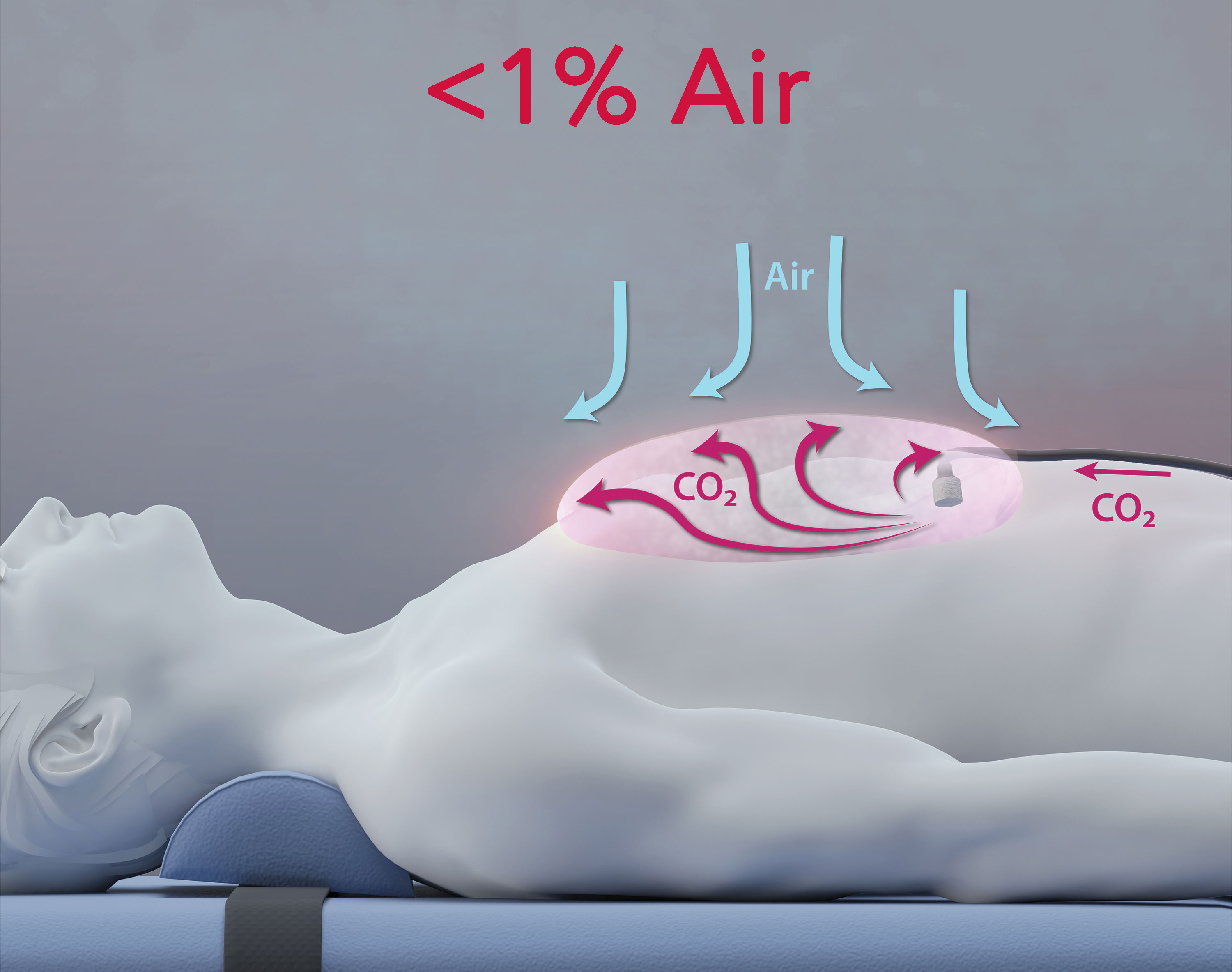

CarbonAid Deairing CO2 Diffuser provided an almost complete de-airing of the model (<0.2% remaining air) at flows of 5-10 L/min. This was the result of a uniform distribution of CO2 with a calculated velocity of about 0.1 meter/second.2

CarbonAid-9-1024x737 copy

PRODUCT VIDEO

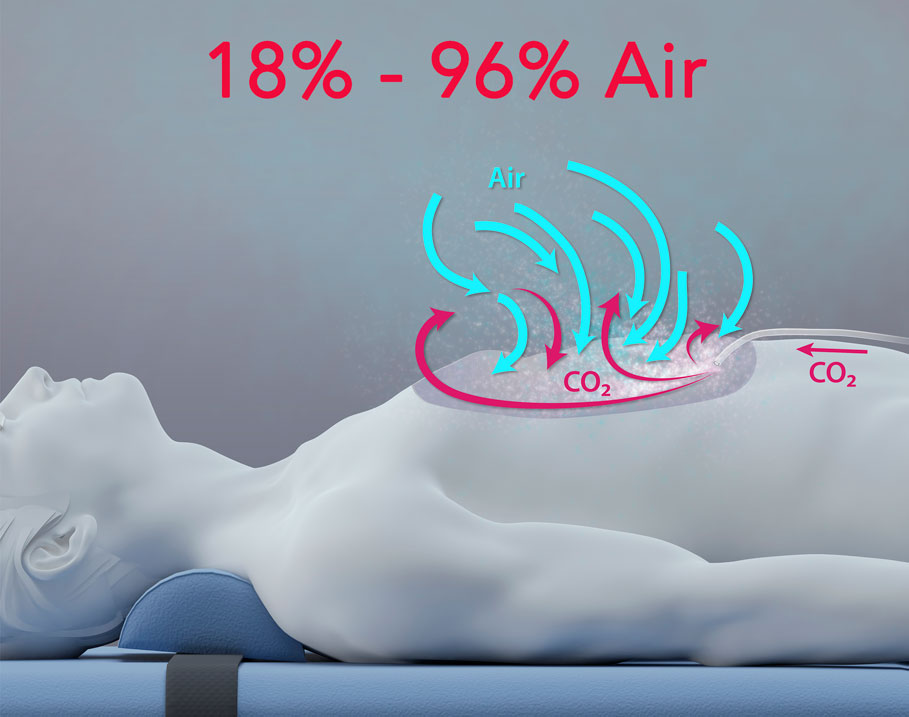

CarbonAid vs Open Ended Tubing

Additional Resources

Explore additional resources for CarbonAid below. For further information or to contact a sales associate in your area, contact us.

CarbonAid Sizing Chart

Digital Brochure Surgeon Perspectives on CarbonAid: Darien Bradford, MD

CarbonAid vs Other De-airing Devices

CarbonAid Brief Demo Video

Product Highlights

  1. Persson M. et al. (2003)  De-airing of a Cardiothoracic Wound Cavity Model With Carbon Dioxide: Theory and Comparison of a Gas Diffuser With Conventional Tubes. J Cardiothorac Vasc Anesth. 17(3):329-35.
  2. Svenarud P. et al. (2004) Effect of CO2 Insufflation on the Number and Behavior of Air Microemboli in Open-Heart Surgery. A Randomized Clinical Trial. Circ. 109(9):1127-32.
  3. Persson M. et al. (2005) Carbon dioxide inhibits the growth rate of Staphylococcus aureus at body temperature. Surg Endosc.19(1):91-4.
  4. Persson M. et al. (2004) Wound ventilation with carbon dioxide: a simple method to prevent direct airborne contamination during cardiac surgery? J Hosp Infect. 56(2):131-6.

Clinical Evidence

  1. Vandenberghe S. et. al. (2020) Direct Visualization of Carbon dioxide field flooding: Optical and concentration level comparison of diffusor effectivness. J Thorac Cardiovasc Surg. 159(3):958-968. doi: 10.1016/j.jtcvs.2019.04.040.
  2.  Persson M. et al. (2003)  De-airing of a Cardiothoracic Wound Cavity Model With Carbon Dioxide: Theory and Comparison of a Gas Diffuser With Conventional Tubes. J Cardiothorac Vasc Anesth.  17(3):329-35.
